Positek

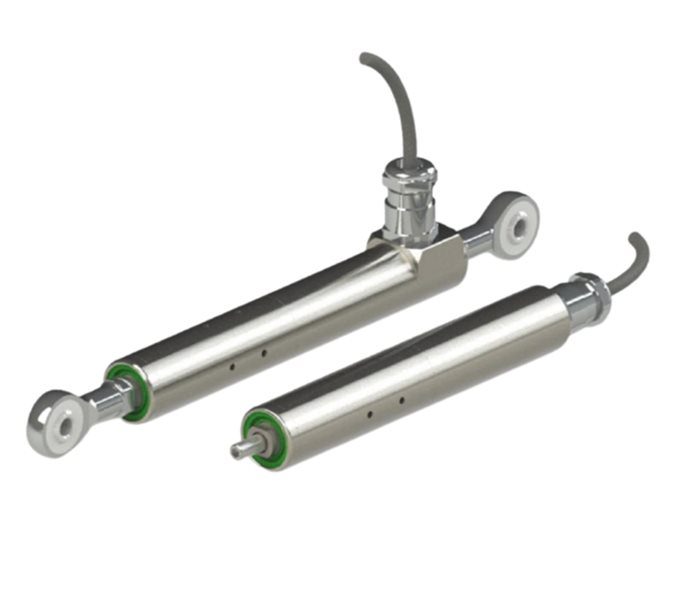

S119

Part no.: S119

Key Features

• Body Diameter: 19mm

• Sensor Mounting: M5 rod eyes or body clamps

• Available in any measurement angle from 0-5mm to 0-800m

• Sealed to IP68 10bar, 100msw, 145psi(for 350bar sealing see S125)

Based on Positek’s well-proven, non-contacting PIPS® (Positek Inductive Position Sensor) technology, the new S119 features a choice of industry standard output options calibrated to a user-specified travel range up to 350 mm. With typical independent linearity of ? ± 0.25% FSO at 20°C, the fully submersible push rod style sensor includes IP68-10 bar/IP69K environmental protection in a robust 19 mm diameter 316 stainless steel housing with a wide choice of mounting options.

Datasheet Download

Manufacturer Website

Call us for more info at

"*" indicates required fields

Hi, My name is

and I’m interested in the

You can reach me by email at

or phone at

Message

This field is for validation purposes and should be left unchanged.
