Positek

X106

Part no.: X106

Key Features

• ATEX/IECEx approved to: Ex II 1G : Ex ia IIC T4 GA (Ta = -40°C to +80°C)

• Sensor Mounting: In-cylinder

• Available in any measurement range from 0-5mm to 0-800mm

• Sealed to IP65/67 depending on connector/cable option

The intrinsically safe X106 is ATEX and IECEx approved for use in potentially explosive gas/vapour atmospheres. It is designed for demanding hydraulic or pneumatic cylinder position feedback applications where service life, environmental resistance and cost are important and is ideal for OEMs seeking good sensor performance for arduous applications in hazardous areas.

Overall performance, repeatability and stability are outstanding over a wide temperature range. The unit is highly compact and space-efficient, being responsive along almost its entire length. Like all Positek sensors it provides a linear output proportional to displacement, each unit is supplied with the output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in.

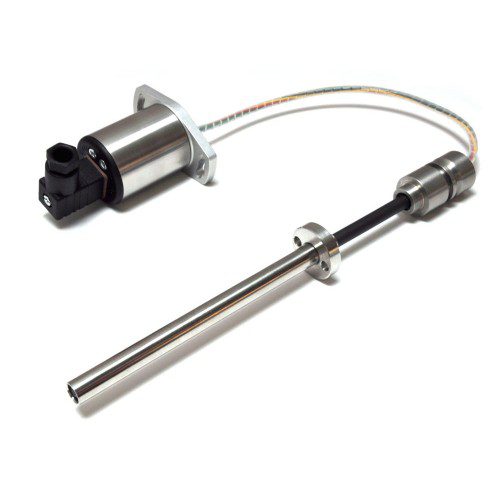

The X106 is very rugged, being made of stainless steel with an inert fluoropolymer-sheathed probe and stainless steel target tube. The probe and target are easy to install, as is the electronics module which has a two mounting options. Environmental sealing is to IP65 or IP67 depending on selected cable or connector options.

Positek intrinsically safe sensors are designed to be used with a galvanically isolated amplifier . Approved galvanic isolation amplifiers (X005) are available from Positek; there is a choice of 0.5-9.5V or 4-20mA transmission outputs.

The sensor can be installed with a cable length up to 1km between the sensor and the amplifier.

Datasheet Download

Part Builder

Drawing Download
