Exploring the Intricacies of Linear Draw Wire Sensors

Linear draw wire sensors, also known as cable-extension transducers or string potentiometers, are utilized for precise measurement of linear displacement. These sensors are highly valued for their accuracy, versatility, and durability in various industrial and scientific applications.

Understanding the Function of Linear Draw Wire Sensors

The primary mechanism of linear draw wire sensors involves a wire or cable wound around a spool. When the object being measured moves, the wire extends and retracts accordingly. This movement is translated into a linear displacement measurement through a spring-loaded spool mechanism, which ensures consistent tension on the wire. The spool is connected to a rotary encoder, which converts the linear movement of the wire into an electrical signal. This signal is then interpreted to provide precise measurements of distance and position.


Although draw wires are available in a wide variety of stroke length, communication interfaces and connector/cable options, the fundamental mechanics of each is similar.

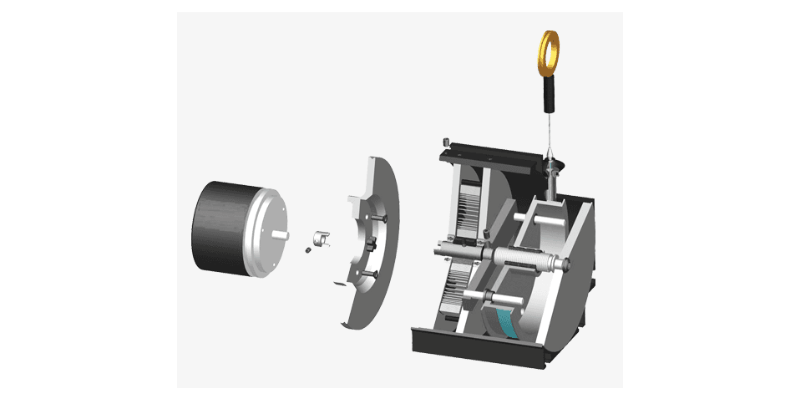

Key Components

  • Wire or Cable: The flexible element that extends and retracts with the movement of the measured object.
  • Spool Mechanism: Maintains tension in the wire and translates its movement into rotational motion.
  • Sensor (Encoder): Converts the rotational motion into an electrical signal.
  • Spring System: Ensures the wire remains taut and accurate over the measurement range.

Communication Interfaces

Because a draw wire sensor relies on a rotary encoder, it can have any of the commonly available communication interfaces that rotary encoders have. This includes analog (voltage, 4-20mA current), CANopen, J1939, Ethernet based protocols such as PROFIBUS, EtherNet/IP, EtherCat, Modbus RTU and others.

Design Considerations

While not appropriate for all linear applications, draw wires often do well in applications that are measuring a stroke between a foot and 30’, although longer options are available. For measurements shorter, often alternatives such as potentiometers or LVIT’s are better suited.

For measurements that have environmental challenges such as dirt, dust and water, pulleys, brushes and other components can be used in an effort to clean the wire off before the wire is retracted back into the spool. Pulleys can also be used so that the larger draw wire mechanics can be located somewhere beyond where the immediate measured stroke length is. This can be helpful in tight applications or outdoor environments.

Applications of Linear Draw Wire Sensors

Linear draw wire sensors are utilized in a wide array of applications due to their robustness and precision. Here are some prominent examples:

Industrial Automation

In automated manufacturing facilities, linear draw wire sensors monitor the position of moving parts, ensuring precise control over machinery operations. This enhances the accuracy and efficiency of processes such as robotic arm movement, conveyor belt positioning, and automated assembly lines.

Construction and Heavy Equipment

These sensors are employed in construction machinery to measure the extension of hydraulic cylinders, boom lengths, and other movable components. They provide real-time data to operators, facilitating safe and efficient operations in cranes, excavators, and loaders.

Aerospace and Defense

In aerospace applications, linear draw wire sensors are used to monitor the movement of control surfaces, landing gear positions, and other critical components. Their reliability and accuracy are essential for ensuring the safety and performance of aircraft and military vehicles.

Medical Devices

Linear draw wire sensors are integrated into various medical devices to measure the displacement of components, such as the movement of patient beds or the positioning of surgical tools.

Conclusion

Linear draw wire sensors are indispensable tools in various fields, offering reliable and precise measurements of linear displacement. Their robust design and versatility make them suitable for a wide range of applications, from industrial automation to aerospace. Understanding their functionality and applications enables industries to leverage their capabilities, enhancing operational efficiency and accuracy.
