Understanding Magnetostrictive Linear Scale Encoders

A Comprehensive Guide

Magnetic linear scale encoders are critical components in modern industrial applications, providing precise position feedback required for various automation and control systems. These encoders use magnetic fields to detect and measure linear displacement, ensuring accurate positioning in a wide range of machinery and equipment. In this blog post, we will focus on Magnetostrictive linear encoders.

Magnetostrictive Linear Scale Encoders

Magnetostrictive encoders operate on the principle of magnetostriction – a phenomenon where certain ferromagnetic materials change shape or dimensions in response to an applied magnetic field. These encoders consist of a magnetostrictive sensor element and a movable magnet (target). As the magnet travels along the sensor element, it induces changes in the material’s dimensions, generating a signal proportional to the magnet’s position.

Advantages:

  • High accuracy and resolution
  • Robust and durable construction
  • Resistance to harsh environmental conditions

Applications:

  • Hydraulic cylinder position sensing
  • Linear position feedback in manufacturing machinery
  • Robotic arm positioning

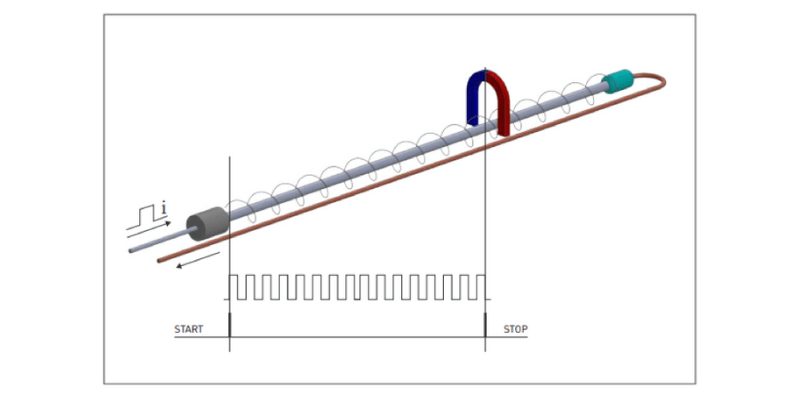

The working principle of magnetostrictive sensors involves an electronic circuit sending an initial pulse to the magnetostrictive measurement wire. This electric pulse creates an electromagnetic wave traveling along the magnetostrictive wire. A magnet, which moves based on the changing mechanical position outside the sensor, generates a stop signal at the point where it meets the electromagnetic wave. The ratio between the initial pulse signal and the stop signal contains the position information of the sensor.

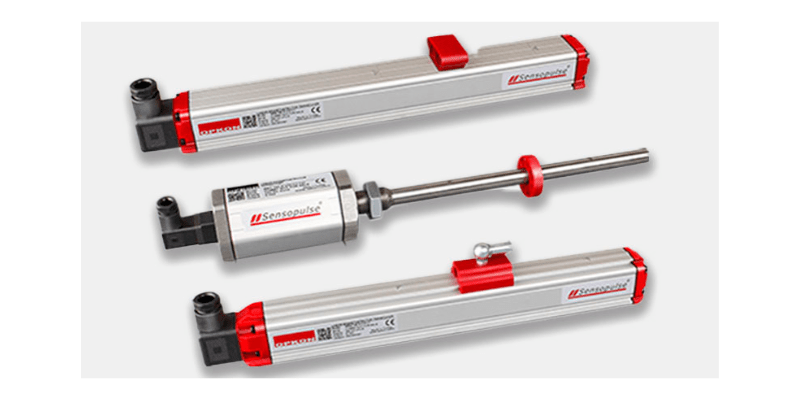

Magnetostrictive linear sensors are available in a wide variety of mechanical form factors to make for easy integration.

Conclusion

Magnetic linear scale encoders, including Magnetostrictive, Hall effect, and TMR types, play a vital role in advancing automation and precision in various industries. By understanding their principles, advantages, and applications, engineers and designers can make informed decisions to enhance system performance and reliability. Whether it’s for industrial machinery, robotics, or medical devices, selecting the appropriate magnetic encoder ensures optimal functionality and efficiency.
